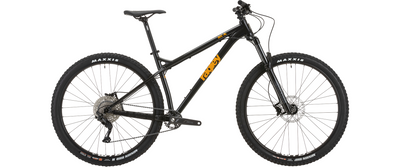

Ragley Big AL 2.0 Hardtail Bike - £1,399.99
The Big Al is the 29” counterpart to the Marley; designed as a fun all-rounder with the same performance and value that made its smaller-wheeled sibling a multiple test winner.
Sharing the custom butted 6061 alloy tubing, the Big Al balances a stiff frame with enough compliance for the longest days in the saddle. ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end all keeping things bang up to date.
Components are chosen for performance and reliability. A Shimano/Sunrace groupset and SRAM brakes, 140mm RockShox fork, tubeless ready wheels and the range topping 3C EXO+ Maxxis tyres.
As with all Ragley hardtails, the joy really is in the geometry: A perfect balance between all-out gravity led tomfoolery and practical pedalability. Just like the Marley, the Big Al is well mannered during a leisurely all-day ride but drop the saddle and send it down the rough stuff for the good times…
- Alloy Frame
- Available in M, L and XL
- 29" Wheel
- 140mm fork
|Frame||Ragley Big Al - Alloy Boost 29"|
|Fork||RockShox Recon Silver RL 140mm Solo Air, 29", Stealth Maxle, 15X110MM, 51mm offset|
|Wheelset||Nukeproof Neutron Boost Hubs, 36 points of engagement, HG Freehub, WTB ST i30 TSC 2.0 29'' 32h rims|
|Shifter||Shimano Deore M4100, 10-SPEED, Direct attach to brake with iSpec EV|
|Rear Deraileur||Sunrace RDMS300|
|Chain||KMC X10-EPT 10 SPEED|
|Cassette||Sunrace MS2 10 speed, 11-46t|
|Crankset||Shimano Deore M5100 or Race Face Ride, 170mm, 30t, Boost|
|Rotors||SRAM Centerline 180mm|
|Tyres||Maxxis MINION DHF 29x2.5 WT 3C MaxxTerra/EXO+/TR 120TPI, Maxxis MINION DHR II 29X2.40 WT 3C MaxxTerra/EXO/TR 60TPI|
|Handlebars||Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm)|
|Stem||Ragley 31.8mm clamp, 50mm length, +3° rise|
|Seatpost||Ragley 31.6mm x 400mm length Alloy|
|Headset||Nukeproof Neutron ZS44/28.6 | ZS56/40 Headset with Ragley Top Cap|
|Grips||Ragley A20 Compound|
|Weight: (Size Medium)||TBD|
GEOMETRY & SIZING
|(C) Effective Top Tube Length||625mm||645mm||667mm|
|(D) Seattube Length||420mm||460mm||500mm|
|(E) Seattube Angle (Actual)||74||74||74|
|(F) Headtube Length||100mm||110mm||120mm|
|(G) Headtube Angle||65.5||65.5||65.5|
|(H) Chainstay Length||435mm||435mm||435mm|
|(J) Bottom Bracket Drop||-65mm||-65mm||-65mm|
|(K) Stand Over Height||758mm||784mm||813mm|
|(L) Fork Travel||140mm||140mm||140mm|
|(M) Fork Offset||51mm||51mm||51mm|
|(N) Axle to Crown||541mm||541mm||541mm|
|Recommended Fork Travel||130mm – 150mm|
|Axle to Crown||541mm|
|Max Tyre Size||2.5''|
|Headtube||ZS44/28.6 | ZS56/40|
|Rear Axle||M12x175mm 1.5 Thread|
|Chain Guide||ISCG 05 Tabs|
