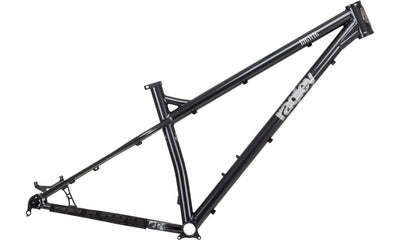

Ragley Big Wig Hardtail Frame 2021 - £599.99

Ideal for all-day epics, fast singletrack trails with friends and backcountry exploration sessions, the Big Wig Hardtail Frame from Ragley is versatile, reliable and fun. Plus, it features a Chromoly (CrMo) frame, enduro-inspired geometry, Boost dropout spacing and is compatible with modern components.

The Big Wig 29er is a commanding frame; the big-wheeled counterpart to the infamous Blue Pig.

The 29” wheels give it all-out speed like no other, with tried and tested geometry putting you in complete control between the choppiest of corners. The Big Wig is at home being piloted at an enduro race, taking on a multi-day adventure or just smashing laps of your favourite trail centre. Like so many of our bikes, it’s a versatile tool to be ridden almost anywhere, by anyone.

The Big Wig frameset features ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. Our steel frames are engineered from custom triple butted 4130 Chromoly tubing for a frame that is stiff but lively and comfortable.

Looking for a true do-it-all bike to deliver the good times well into your riding future? The Big Wig will take you there, at speed...

    Big Wig Hardtail Frame 2021

    Regular price£599.99
    /
    Tax included.
    Colour
    Frame Material
    Wheel Size
    Big Wig Hardtail Frame 2021
    Big Wig Hardtail Frame 2021

    GEOMETRY & SIZING


    MediumLargeX-Large
    (A) Reach440mm460mm480mm
    (B) Stack634mm643mm652mm
    (C) Effective Top Tube Length625mm645mm667mm
    (D) Seattube Length420mm460mm500mm
    (E) Seattube Angle (Actual)747474
    (F) Headtube Length100mm110mm120mm
    (G) Headtube Angle65.565.565.5
    (H) Chainstay Length435mm435mm435mm
    (I) Wheelbase119712171241
    (J) Bottom Bracket Drop-65mm-65mm-65mm
    (K) Stand Over Height758mm784mm813mm
    (L) Fork Travel140mm140mm140mm
    (M) Fork Offset51mm51mm51mm
    (N) Axle to Crown541mm541mm541mm

    FRAME SPECIFICATIONS

    Material6061 alloy
    Recommended Fork Travel140mm – 160mm
    Axle to Crown541mm
    Fork Offset51mm
    Wheels Size29''
    Max Tyre Size2.5''
    HeadtubeZS44/28.6 | ZS56/40
    Seatpost31.6mm
    Seat Clamp34.9mm
    BB73mm BSA
    Rear Hub12x148mm
    Rear AxleM12x175mm 1.5 Thread
    Chain GuideISCG 05 Tabs
    Brake MountPM160
    ProtectionChain Stay
