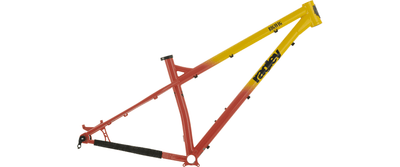

Ragley Big Wig Hardtail Frame - £599.99
Ideal for all-day epics, fast singletrack trails with friends and backcountry exploration sessions, the Big Wig Hardtail Frame from Ragley is versatile, reliable and fun. Plus, it features a Chromoly (CrMo) frame, enduro-inspired geometry, Boost dropout spacing and is compatible with modern components.
The Big Wig 29er is a commanding frame; the big-wheeled counterpart to the infamous Blue Pig.
The 29” wheels give it all-out speed like no other, with tried and tested geometry putting you in complete control between the choppiest of corners. The Big Wig is at home being piloted at an enduro race, taking on a multi-day adventure or just smashing laps of your favourite trail centre. Like so many of our bikes, it’s a versatile tool to be ridden almost anywhere, by anyone.
The Big Wig frameset features ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. Our steel frames are engineered from custom triple butted 4130 Chromoly tubing for a frame that is stiff but lively and comfortable.
Looking for a true do-it-all bike to deliver the good times well into your riding future? The Big Wig will take you there, at speed...
- Steel Frame
- Available in M, L and XL
- 29" Wheel
- Designed around a 150mm fork
GEOMETRY & SIZING
|(C) Effective Top Tube Length||625mm||645mm||667mm|
|(D) Seattube Length||420mm||460mm||500mm|
|(E) Seattube Angle (Actual)||74||74||74|
|(F) Headtube Length||100mm||110mm||120mm|
|(G) Headtube Angle||65.5||65.5||65.5|
|(H) Chainstay Length||435mm||435mm||435mm|
|(J) Bottom Bracket Drop||-65mm||-65mm||-65mm|
|(K) Stand Over Height||758mm||784mm||813mm|
|(L) Fork Travel||140mm||140mm||140mm|
|(M) Fork Offset||51mm||51mm||51mm|
|(N) Axle to Crown||541mm||541mm||541mm|
|Recommended Fork Travel||140mm – 160mm|
|Axle to Crown||541mm|
|Max Tyre Size||2.5''|
|Headtube||ZS44/28.6 | ZS56/40|
|Rear Axle||M12x175mm 1.5 Thread|
|Chain Guide||ISCG 05 Tabs|
