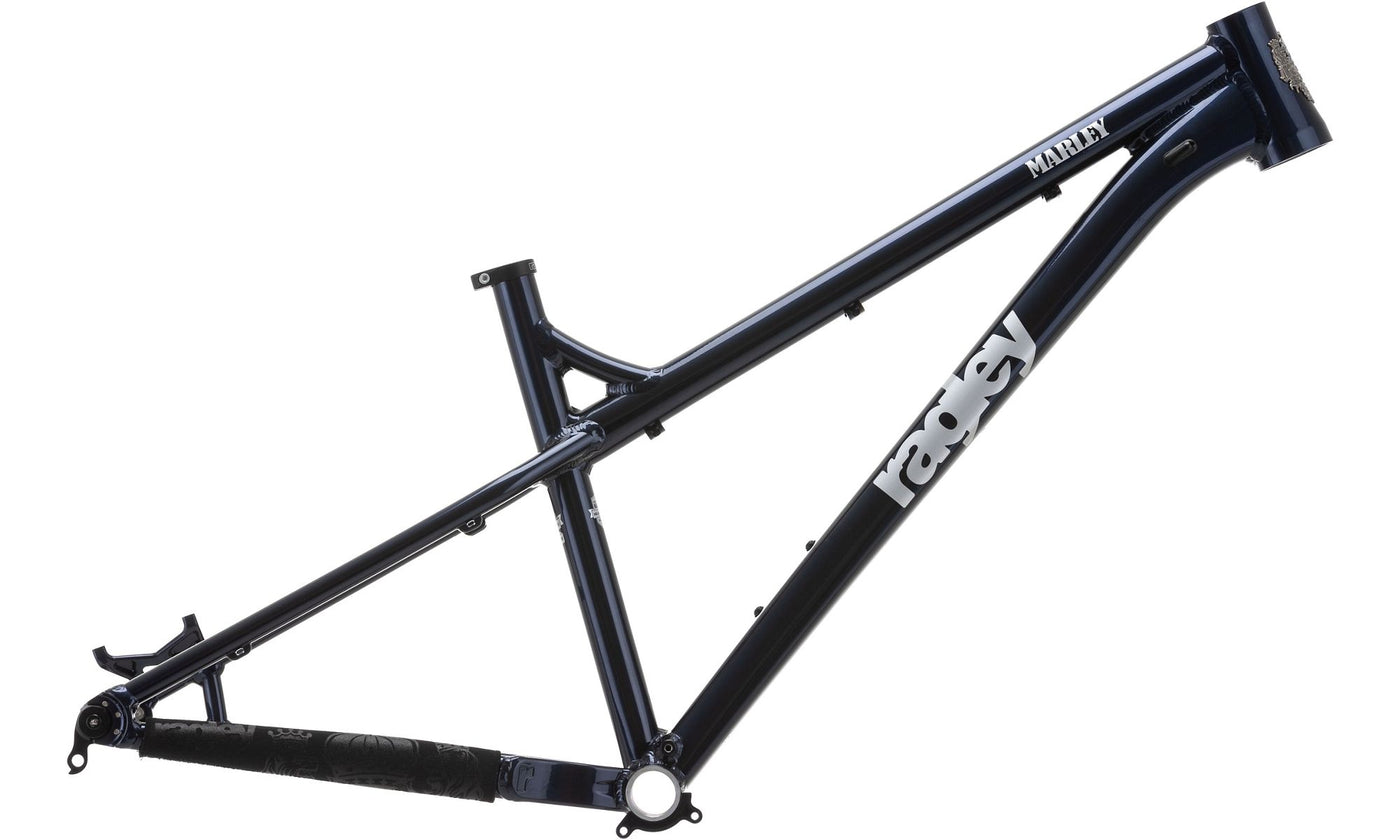

Ragley Marley Hardtail Frame - £349.99

The Marley Hardtail Frame is a playful and stable frame that's suited to fast singletrack routes, flowing trail sessions and long days in the saddle. Plus, it features a robust and lightweight alloy frame that has a recommended max fork travel of 140mm, clearance for up to 2.6" tyres and a BSA threaded bottom bracket shell.

The Marley has become a classic: light, punchy and versatile. It might be your first bike to explore off-road, or the agile plaything of a seasoned rider. Using 6061 alloy tubing, the Marley balances a stiff frame with enough compliance for the longest of days in the saddle.

Geometry is based firmly around fun with a 65.5-degree head angle keeping things stable and confidence inspiring on the rough stuff. Elsewhere on the frame the tick-boxes are checked; ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end.

Up, down, along and over; the Marley proves a great riding all-rounder doesn’t have to break the bank.

Marley Hardtail Frame

Regular price£349.99
/
Tax included.
Colour
Frame Material
Wheel Size
Marley Hardtail Frame
Marley Hardtail Frame

GEOMETRY & SIZING

SmallMediumLargeX-Large
(A) Reach415mm435mm455mm475mm
(B) Stack601mm613mm619mm628mm
(C) Effective Top Tube Length599mm622mm644mm667mm
(D) Seattube Length380mm420mm460mm500mm
(E) Seattube Angle (Actual)73737373
(F) Headtube Length110mm120mm130mm140mm
(G) Headtube Angle65.565.565.565.5
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1137mm1161mm1186mm1209mm
(J) Bottom Bracket Drop-45mm-45mm-45mm-45mm
(K) Stand Over Height737mm750mm772mm778mm
(L) Fork Travel130mm130mm130mm130mm
(M) Fork Offset42mm42mm42mm42mm
(N) Axle to Crown 522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)

FRAME SPECIFICATIONS

Material6061 alloy
Recommended Fork Travel130mm – 140mm
Axle to Crown522mm (130mm Fork)
Fork Offset52mm
Wheels Size27.5''
Max Tyre Size2.6''
HeadtubeZS44/28.6 | ZS56/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12x148mm Boost
Rear Axle12mm x 148mm Thru-Axle M12*P1.5
Chain GuideISCG 05 Tabs
Brake MountPM160
ProtectionChainstay Protector
