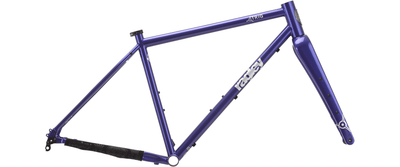

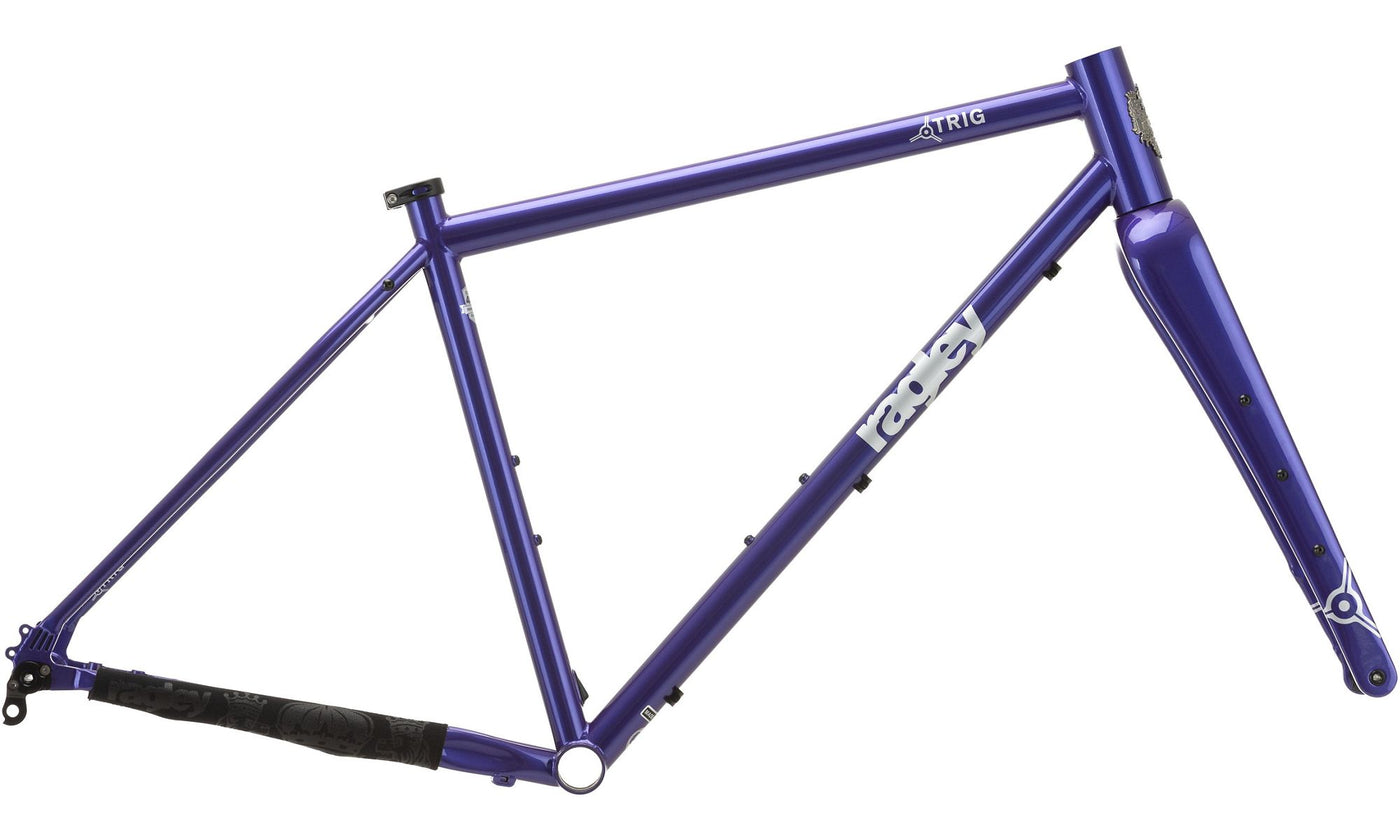

Ragley Trig Gravel Frame and Fork - £649.99

The Ragley Trig is versatile, agile and comfortable. It features a Chromoly frame and carbon fork that combine to ensure you experience superb performance regardless of whether you’re riding on the tarmac or on the trail. Plus, its wide tyre clearance, multiple mounting points and durable 12mm thru-axles make it ideal for bikepacking adventures, inner-city commutes, rapid off-road trail riding and everything else in-between. The Trig frame is suited to any outdoor endeavour.

The Trig has been a firm favourite for a massively diverse group of riders. Ragley has seen them fully loaded for multi-day adventures, shod with slicks as an urban commuter, or just ridden stock for local lockdown sanity missions.

The Trig frameset features a 44mm headtube, multiple bottle cage mounts and tyre clearance to run any 700 or 650 gravel tyre option you want (and up 2.1” wide MTB tyres on 27.5” wheels). Want to get a little rowdier with your drop-bar endeavours? It’s even dropper post compatible for future off-road biased upgrades.

The frame is engineered from custom triple butted 4130 Chromoly steel tubing resulting in a frame that is lightweight and supple enough to provide comfort on longer trail rides whilst robust and stiff enough to take some serious abuse. The carbon fork features a 12mm thru axle and the mounting points you need to take to the backcountry.

Ragley are not going to pigeonhole the trig as gravel or adventure anymore. It’s all the same thing. They just made a super fun and reliable frame for you to go find your own adventure.

Trig Gravel Frame and Fork

Regular price£649.99
/
Tax included.
Colour
Frame Material
Wheel Size
Trig Gravel Frame and Fork

GEOMETRY & SIZING


SmallMediumLargeX-Large
(A) Reach389mm395mm402mm417mm
(B) Stack538mm559mm587mm604mm
(C) Effective Top Tube Length543mm555mm570mm590mm
(D) Seattube Length440mm470mm500mm530mm
(E) Seattube Angle (Actual)74747474
(F) Headtube Length105mm125mm155mm173mm
(G) Headtube Angle69.5707070
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1026mm1035mm1052mm1073mm
(J) Bottom Bracket Drop-66mm-66mm-66mm-66mm
(K) Stand Over Height748.3mm749.9mm783.8mm817.2mm
(L) Fork TravelN/AN/AN/AN/A
(M) Fork Offset48mm48mm48mm48mm
(N) Axle to Crown398mm398mm398mm398mm

FRAME SPECIFICATIONS

Material4130 Cro-Mo steel frame & Carbon fork
Recommended Fork TravelN/A
Axle to Crown398mm
Fork Offset48mm
Wheels Size700 / 27.5''
Max Tyre Size700x40c/27.5×2.1"
HeadtubeZS44/28.6 | EX44/40
Seatpost27.2mm
Seat Clamp31.8
BB68mm BSA
Rear Hub Spacing12mm x 142mm
Front AxleLength: 120mm / Thread Pitch: 1.5 / Diameter: M12 / Thread length: 12mm
Rear AxleLength: 167mm / Thread Pitch: 1.75 / Diameter: M12 / Thread length: 20mm
Brake MountFlat Mount
ProtectionChainstay Protector supplied
